Areas, Objects, and Tiles

Maps for areas are stored in ./areas. The first area players will see is default.tmx (required).

Suggested Settings​

Editor:

  • Fine grid divisions: 2 (Edit -> Preferences -> Interface)
  • Snap To Fine Grid (View -> Snapping)
    • When working with Object Layer
  • Snap To Pixels (View -> Snapping)
    • When working with Collision shapes

Map:

  • Tile Width: 64
  • Tile Height: 32
  • Tile Layer Format: CSV (required)
  • Create map in assets

Tilesets:

  • Type: Based on Tileset Image (other types are not currently supported)
  • Object Alignment:
    • Top - For tile objects stuck to the floor such as warps
      • Set drawing offset to 0,0
    • Bottom - For tile objects that act as a wall
  • Place in a Tile Layer to tune drawing offset

Layers:

  • An area layer is made of an object layer and tile layer
  • Offset X: 0
  • Offset Y: (number of tile layers below) * -16

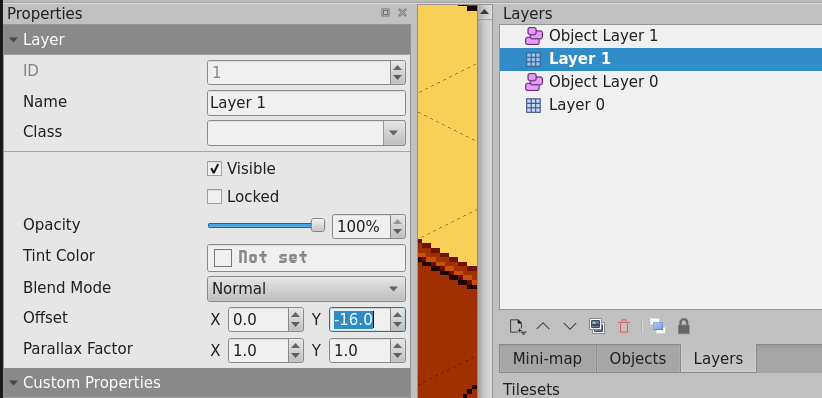

Layering

Custom properties​

Map:

  • Name: string
    • Area name to display in the PersonalMenu
  • Music: string
    • Path to audio asset
  • Background Texture: string
    • Path to background image file
  • Background Animation: string
    • Path to background .animation file
    • One animation state "BG"
      • First frame of this animation determines background repetition
    • Excluding this will use texture size for background repetition
  • Background Vel X: float
  • Background Vel Y: float
  • Background Parallax: float
  • Foreground Texture: string
    • Path to foreground image file
  • Foreground Animation: string
    • Path to foreground .animation file
    • One animation state "BG"
      • First frame of this animation determines foreground repetition
    • Excluding this will use texture size for foreground repetition
  • Foreground Vel X: float
  • Foreground Vel Y: float
  • Foreground Parallax: float

Tiles and Tilesets:

  • Shadow: string

    • "Always"
    • "Never"
    • Unset - Automatic

  • Minimap: bool

    • When set and not checked, this tile will skip rendering to the minimap

  • Layer: int

    • Controls sprite layering within map layers, negative values appear closer to the camera.

Object and Tile Classes​

Classes are used to denote special tiles or objects understood by the client.

Home Warp​

  • Tile Objects only
  • Visible in map
  • Players will disconnect after colliding with the warp
  • Custom properties:
    • Direction: string
      • Left
      • Right
      • Up
      • Down
      • Up Left
      • Up Right
      • Down Left
      • Down Right

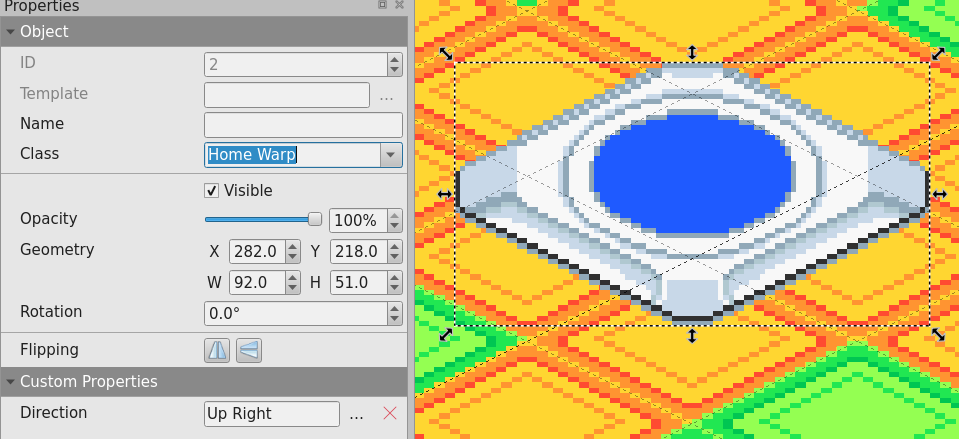

Home Warp

Position Warp​

  • Tile Objects only
  • Visible in map
  • Players will be warped to the set position after colliding with the warp
  • Custom properties:
    • X: float
    • Y: float
    • Z: float
    • Direction: string
      • Left
      • Right
      • Up
      • Down
      • Up Left
      • Up Right
      • Down Left
      • Down Right

Server Warp​

  • Tile Objects only
  • Visible in map
  • Players will be transferred to a different server after colliding with the warp
  • Custom properties:
    • Address: string
    • Data: string
      • Custom data to pass to the other server
      • Can be read in the player_request event on the other server
      • Try to keep it short! Long data strings may get ignored
    • Direction: string
      • Left
      • Right
      • Up
      • Down
      • Up Left
      • Up Right
      • Down Left
      • Down Right

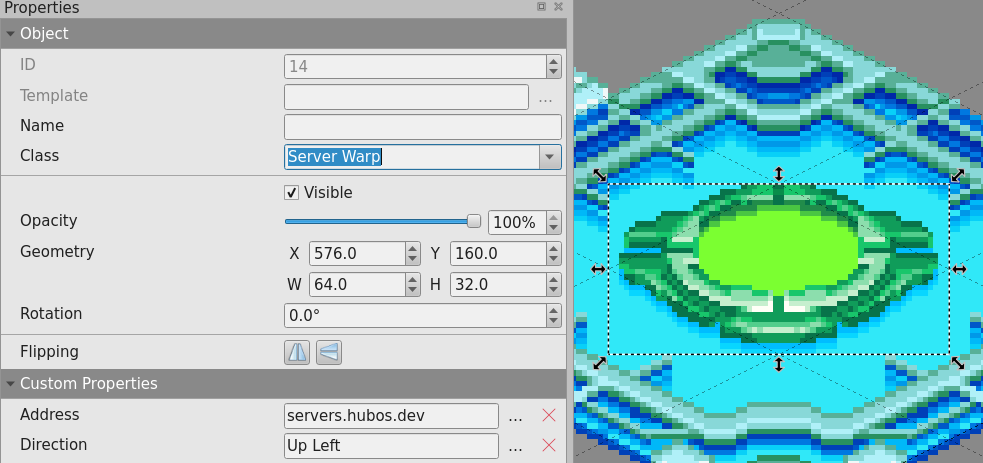

Server Warp

Custom Server Warp​

  • Tile Objects only
  • Visible in map
  • Players will be warped out after colliding with the warp, the result of the warp can be resolved in a listener for custom_warp
  • Custom Properties:
    • Direction: string
      • Left
      • Right
      • Up
      • Down
      • Up Left
      • Up Right
      • Down Left
      • Down Right

Custom Warp​

  • Tile Objects only
  • Visible in map
  • Players will be warped out after colliding with the warp, the result of the warp can be resolved in a listener for custom_warp
    • Direction: string
      • Left
      • Right
      • Up
      • Down
      • Up Left
      • Up Right
      • Down Left
      • Down Right

Stairs​

  • Tiles only
  • Visible in map
  • Allows players to walk up or down a layer
  • Makes tile directly above become treated as a hole
  • Custom properties:
    • Direction: string
      • Marks the direction the player will travel up
      • Up Left
      • Up Right
      • Down Left
      • Down Right

Stairs moving Up Left / Up Right generally need a top tile placed on the next layer for proper layering.

Collisions are ignored for tiles placed above a stair tile for this reason.

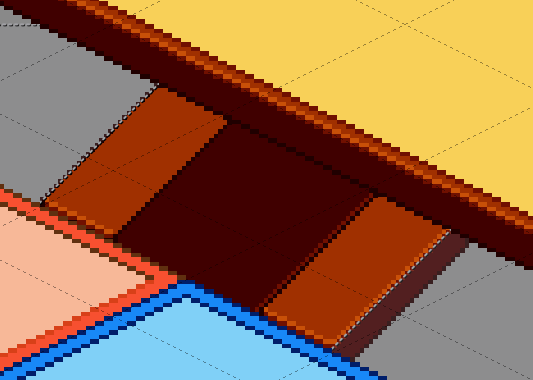

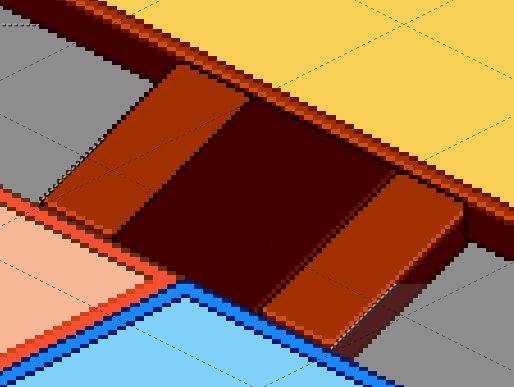

No TopWith Top
Stairs No TopStairs With Top

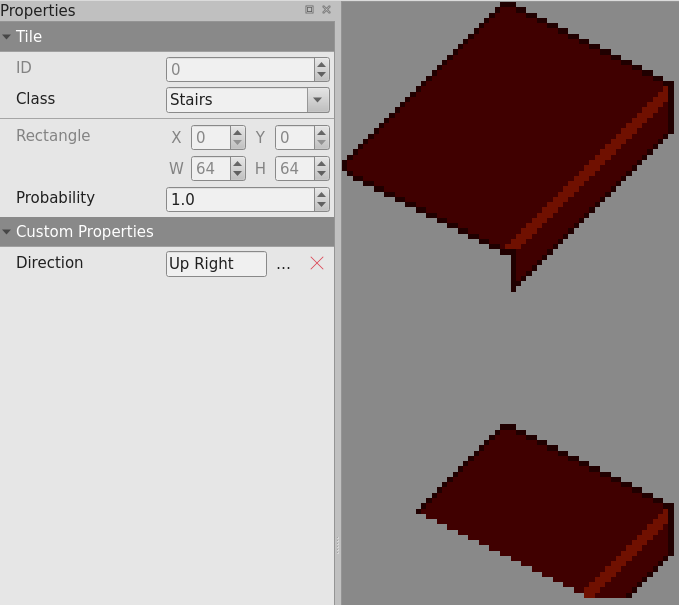

Stair tile sample, the tile on the bottom is used as the upper half of the stairs and has no properties:

Stairs

Conveyor​

  • Tiles only
  • Visible in map
  • Custom properties:
    • Direction: string
      • Marks the direction the player will travel
      • Up Left
      • Up Right
      • Down Left
      • Down Right
    • Speed: number? (Tiles per second, default: 6)
    • Sound Effect: string

Ice​

  • Tiles only
  • Custom properties:
    • Speed: number? (Tiles per second, default: 6)
    • Sound Effect: string

Treadmill​

  • Tiles only
  • Custom properties:
    • Direction: string
      • Marks the direction the player will travel
      • Up Left
      • Up Right
      • Down Left
      • Down Right
    • Speed: number? (Tiles per second, default: 1.875)

Board​

  • Visible in map

Shop​

  • Visible in map

Bookmark​

  • Visible in map

Marker​

  • Objects only
  • Visible in map
  • Custom Properties
    • Texture: string
    • Animation: string
    • State: string

Arrow​

  • Tiles only
  • Visible in map
  • Custom properties:
    • Direction: string
      • Up Left
      • Up Right
      • Down Left
      • Down Right

Invisible​

  • Tiles only
  • Hides the tile from players, great for invisible pathways
